Programator Wellon VP-896

  • Listare

WELLON VP-896 Programator universal memorii/microcontrolere cu conectare prin USB

Pret 3230 lei

Peste 102.000 de cipuri suportate (E/EPROM, PLD, FLASH, MCU) lista o gasiti la http://weilei.com/VP-896list.htm.
Descarcare software 4.6.4
Dimensiuni: 219x169x34 mm, greutate: 580g.
48 Pin ZIF socket pin-drivers.
Interfata cu LAPTOP, PC, PS/2 sau sisteme compatibile prin portul USB
Accepta standarde de formate de fisiere: JEDEC, INTEL (Extended) HEX, Motorola S record
Suporta 16 si 32-bit word split (Set Programming)
Suporta cele mai multe compilatoare in format JEDEC incluzand ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer si ISDATA
Are capabilitati de Test Vector PLD si editor multiarray fuse map
Testeaza TTL/CMOS logic ICs si Dynamic/Static Random Access Memory.
Programare optimizata pentru fiecare memorie in parte
Identifica automat fabricantul si tipul de  E(E)PROM, TTL/CMOS logic IC
Verifica insertia memoriei si contactele slabe ale pinilor
Suporta dispozitive si la doar 1.5V tensiune
Foloseste adaptoare universale DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP ( pana la 48 pini)
Modul Auto-run porneste automat programarea cand detecteaza insertia unui cip
Suporta Windows Vista/XP/2000/NT/9x/ME
Actualizare de pe internet.

Functii suplimentare:
- analizor logic (8 canale/100K)
- generator de semnal (1-125 KHz)
- frecventmetru (0-100 KHz)

Pachetul vine ambalat la cutie cu:
- programator
- alimentator
- cablu USB
- CD
- certificat de conformitate, certificat de garantie 1 an, manual de utilizare


Programator Wellon VP-896

  • Listare

WELLON VP-896 Programator universal memorii/microcontrolere cu conectare prin USB

Pret 3230 lei

Peste 102.000 de cipuri suportate (E/EPROM, PLD, FLASH, MCU) lista o gasiti la http://weilei.com/VP-896list.htm.
Descarcare software 4.6.4
Dimensiuni: 219x169x34 mm, greutate: 580g.
48 Pin ZIF socket pin-drivers.
Interfata cu LAPTOP, PC, PS/2 sau sisteme compatibile prin portul USB
Accepta standarde de formate de fisiere: JEDEC, INTEL (Extended) HEX, Motorola S record
Suporta 16 si 32-bit word split (Set Programming)
Suporta cele mai multe compilatoare in format JEDEC incluzand ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer si ISDATA
Are capabilitati de Test Vector PLD si editor multiarray fuse map
Testeaza TTL/CMOS logic ICs si Dynamic/Static Random Access Memory.
Programare optimizata pentru fiecare memorie in parte
Identifica automat fabricantul si tipul de  E(E)PROM, TTL/CMOS logic IC
Verifica insertia memoriei si contactele slabe ale pinilor
Suporta dispozitive si la doar 1.5V tensiune
Foloseste adaptoare universale DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP ( pana la 48 pini)
Modul Auto-run porneste automat programarea cand detecteaza insertia unui cip
Suporta Windows Vista/XP/2000/NT/9x/ME
Actualizare de pe internet.

Functii suplimentare:
- analizor logic (8 canale/100K)
- generator de semnal (1-125 KHz)
- frecventmetru (0-100 KHz)

Pachetul vine ambalat la cutie cu:
- programator
- alimentator
- cablu USB
- CD
- certificat de conformitate, certificat de garantie 1 an, manual de utilizare

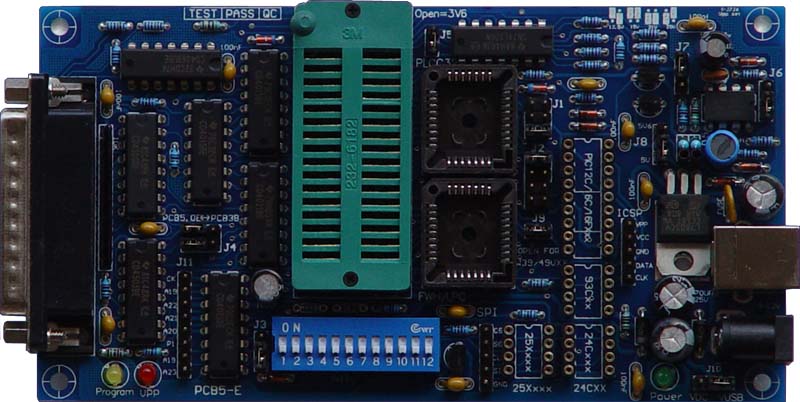

Programator Willem PCB5.0

  • Listare

Pret:  lei

Versiune hardware: PCB v5.0 (Willem)
 32Pin ZIF socket pin-drivers.
Lista de dispozitive suportate este in josul paginii*.
Descarcare software 0.98D11 0.98D12C14
 Se poate comuta intre PCB v3 si PCB v5.0 printr-un jumper.
Cu alimentare din USB se pot programa memorii cu Vcc max 5V, dar cu ajutorul unui alimentator separat se poate comuta pe Vcc 5.6V si 6.2V, iar VPP: 3.3V, 5V, 15V, 21V, 25V
Are conectori onboard PLCC32 si FWH/LPC, si comutatoare manuale.

Pretul contine doar programatorul si CD, fara cabluri (LPT/USB).
*)are suport imbunatatit pentru noile memorii seriale SPI, vedeti tabelul din josul paginii .

Tipuri de dispozitive suportate*:


LISTA GENERALA WILLEM

(EPROM,EEPROM,FLASH,I2C,PIC,MCS-51,AVR, 93Cxx, ISP)
EPROM 27C64 , 27C128 , 27C256 , 27C512 , 27C010 , 27C020 , 27C040 , 27C1001
M27C1001 , M27C2001 , M27C4001
27C080 (A19) , M27C801 , M87C257
2716(Vpp25V) , 2732 , (adapter DIP24)
2764 , 27128 , 27256 , 27512 , 27010,
Vpp12.5V (21Vpp Modify Circuit)
EEPROM 28C65 , 28C64 , 28C128 , 28C256 , 28C512 , 28C010 , 28C020 , 28C040
M28C16A/17A (DIP28)
(Adapter or Jumper) 28C16,XLS2816 (DIP24)
FLASH Memory

28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020
MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000
Am28F256A , Am28F512A , Am28F010A , Am28F020A (New command erase/prog.)
-- intel ---
i28F001BX , 28F004 , 28F008 , 28F016
FLASH Memory

29F64 , 29F128 , 29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080
29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 , V29C51002T , 29LV040
Serial (I2C) EEPROM
24Cxx

24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92
--- page write ----
24C32 , 24C64 , 24C128 , 24C256 , 24C512
Microwire EEPROM

<------ Data 8bit -----> (pin 6 ->ORG. [Schematic connect to GND])
93C06 , 93C46 , 93LC46 , 93C56 , 93C57, 93C66 , 93C76 , 93C86 (8bit) , AT59C11 , AT59C22 , AT59C13
CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7)
<------Data 16bit------> (pin 6 ->NC [No Connect])
93C06A , 93C46X , 93C56 , 93C66 , 93C76 , 93C86 (NS)
Microchip PIC 16C84 , 16F84 ,16F84A , 16F627/16F628
12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505
16C620 , 16C621 , 16C622 , 16CE623 , 16CE624 , 16CE625 , 16C710/711
---ICSP connector----
16F870 , 16F871 , 16F872 , 16F873 , 16F874 , 16F876 , 16F877 PIC16F873A , PIC16F874A , PIC16F876A , PIC16F877A
-Add PIC microchip 14bit
PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676 , PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688
PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
-Add microchip 14bit,12bit OTP
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674
PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67
PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A
PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926
PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
-Add PIC microchip 14bit
PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
-Add microchip 14bit OTP
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
-Add PIC microchip 12bit (FLASH memory)
PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57
-Add PIC18Fxxx
PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458
PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320
PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720
PIC18F2331 , 18F2431 , 18F4331 , 18F4431
PIC18F6525 , 18F6621 , 18F8525 , 18F8621
PIC18F6585 , 18F6680 , 18F8585 , 18F8680
PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F6410 , 18F8410 , 18F6490 , 18F8490
Add PIC18Fxxx
PIC18F2410 , PIC18F2420 , PIC18F2455
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585
PIC18F2610 , PIC18F2620 , PIC18F2680
PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585
PIC18F4610 , PIC18F4620 , PIC18F4680
Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785)
Fixed Programming PIC all
Test on chip
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74
PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819
PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A,
eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW
PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431

Atmel Flash Memory
(Sector Programming)
(Software Data Protection)

AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A
W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040
PH29EE010(W29EE011)

ASD AE29F1008 (AT29C010), AE29F2008 (AT29C020)
Ver 0.992 up(DOS). Can run under win9x
(disable prog. CPUIdle or CPUCool)

AT49BV512

Atmel Flash Memory
AT49Fxxx (Subset 29Fxxx)
(Byte-by-Byte Programming)
(Software Data Protection)

Command seq. 5555/AA, 2AAA/55, 5555/A0
AT49F512 , AT49F010 , AT49F020 , AT49F040
SST39SF010 , SST3S9F020 ,SST39SF040
AT49F001 , AT49F002 , AT49F008A

Command seq. 555/AA, 2AA/55, 555/A0
Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080
29F002 , 29F002T , Pm29F002T

Serial Peripheral Interface (SPI)
EEPROM Mode0 (0,0)
AT25xxx, W95xxx

[Atmel] AT25010 , 020 , 040 (A8-A0)
AT25080 , 160 , 320 , 640 , 128 , 256 (A15-A0)
[ST] W95010....256, Microchip 25x010 - 25x640
--- Byte programming
25010 , 25020 , 25040
--- Page programming
25C080 , 25C160 , 25C320 , 25C640 , 25C128 , 25C256 , 25C512
AT25HP256 , AT25HP512 , M25P10 , M25P20 , M25P40
AT25HP1024 (24bit address)
-- CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx
CAT64LC010, CAT64LC020, CAT64LC040

Atmel EEPROM (page prog.)
(Software Data Protection)

 AT28C256 , AT28C010 , AT28C040
Nonvaltile SRAM (DS12xx) DS1220 , DS1225Y , DS1230Y/AB , DS1245Y/AB , DS1249Y/AB

static RAM (Test RAM)

 6116 , 6264 , 62256 , 62512 , 628128

EPROM winbond,SST
Electrical Erase Chip

W27E512 , W27E010 , W27C010 , W27C020 , W27C040
SST27SF256 , SST27SF512 , SST27SF010 , SST27SF020
MX26C4000
Vcc = 3.3-3.6V SST37VF512 , SST37VF010 , SST37VF020 , SST37VF040

Flash Memory SST,Sanyo

 SST28SF040A , LE28F4001

Cipseturi suportate : de folosit impreuna cu adaptoare

Atmel AT89Cxx (MCS-51)
Adaptor AT89+

Atmel Auto Setect
AT89C51 , 52 , 55 , AT89LV51 , 52 , 55
AT89S8252 (8K+2K) , AT89S53 , AT89LS8252 , AT89LS53
AT89C1051 , AT89C2051 , AT89C4051 (20pin)
AT89C51RC (32KB) , AT89C55WD (6.2V)
SST89C54/58 , SI89C52
Intel Auto Select
i87C51 , i87C51FA , i87C51FB
------------------------------------------------
i8xC51 , i8xC52 , i8xC54 , i8xC58 (tWP = 100uS*25 Pulse)

Atmel AVR 8-bit RISC AT90Sxxx
(Parallel programming)
AT89+/ MCS51+

(read , write , erase , verify , checkempty , Lockbits , Fusebits) [Flash memory/EEPROM]
AT90S1200 , AT90S2313
90S2333 , 90S4433 , 90S4414 , 90S8515 , 90S4434 , 90S8535
reference AT90S2313 pin
Function Lockbit read AT90S2313 Errata Sheet.pdf

AT89+/ PLCC44

ROM (read/verify)
P8048AH , P8049AH,P8050AH , P8042AH Vea = 12V
P8041 , P8042

OTP (read/verify/Progam)
P8748 , P8749H , P8742H Vea = 18V

EPROM (read/verify/Progam)
D8748 , D8749 , D8742 , D8741 , D8742 Vea = 18V
EPROM 16bit (DIP40) (1-4Mbit)
Adapter Eprom 16bit
Eprom only
 27C1024 (27C210) , 27C2048 (27C2002) , 27C4096 (27C4002),
Schematic by Toomas Toots
(read , Program byte mode
by use Resister pull up Data Bus (0xFF) , A0 select low or high byte)

EPROM 16bit (DIP42) (4-32Mbit)
Adapter Eprom DIP42
Eprom only

 M27C400(DIP40) , 27C800 , 27C160 , 27C322
Schematic by Toomas Toots
(read , Program byte mode
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
Firmware Hub / LPC FLASH
Adapter Firmware Hub/LPC (PLCC32) (PP mode) (3.3V)

-- Firmware Hub
82802AB , 82802AC , AT49LW040 , AT49LW080

SST49LF002A , SST49LF003A , SST49LF004A , SST49LF008A
W49V002FA , W39V040FA

-- LPC flash
SST49LF020 , SST49LF040
W49V002A , W39V040A
P28F002BC
Adapter P28F002BC (DIP40)

BOOT BLOCK FLASH MEMORY
- P28F002BC
TSOP 48 (8/16 bit) Am29F400, Am29F800, Am29F160, Am29F320, HY29F200,  HY29F400, HY29F800, AT49F2048A, AT49F4096A, AT49F8192A, 29LV200, 29LV400 , 29LV800 , 29LV160 , 29LV320, AT49LV1614, i28F200, i28F400, i28F800, i28F160 (TSOP48), 28F001(DIP32 or PLCC32)
TSOP 48 (16 bit) INTEL 28FX00: 28F400 B3T；28F800 B3T；28F160 B3T；28F400 B3B；28F800 B3B；28F160 B3B；28F800 C3T； 28F160 C3T；28F320 C3T；28F800 C3B；28F160 C3B；28F320 C3B；28F320 J3；28F640 J3;
29LVX00： MBM29LV400-T；MBM29LV800-T；MBM29LV160-T；MBM29LV400-B；MBM29LV800-B； MBM29LV160-B；MBM29DL400；MBM29DL800；MBM29DL16X；MBM29DL32X；MBM29DL322;
39LF/VFX00： 39LF/VF200A；39LF/VF400A；39LF/VF800A；39LF/VF160;29FX00：29F100；29F200； 29F400；29F800；29F160；29F320；29F102

TSOP 40A

 MBM29LV002ST/SB , MBM29LV002TC/BC, MBM29LV002TA/BA, MBM29LV004, MBM29LV008, MBM29LV016, MBM29LV017, MBM29LV080, MBM29F002ST/SB, MBM29LV016, Am29LV004, Am29LV002, Am29LV008, AM29F002ST/SB, AM29F004X, AM29F008X, AM29F016X, AM29F032X
TSOP 40B MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5 , 29F032 , Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU
FWH-TSOP 40 INTEL：i82802AC
ATMEL：AT49LW080/008
SST：SST49LF008/A
LPC flash：SST：SST49LF080/A
FWH/LPC：ST micro：M50FW080/008, M50LPW080/008, M50FW016,M50LPW116, PT49V080/008
FWH-TSOP 32 INTEL：i82802AB, i82802AC
ATMEL：AT49LW040
SST：SST49LF002/A, SST49LF003/A, SST49LF004/A, W39V040F, W39V040FA, W39V040FAP
LPC Flash：SST：SST49LF020/A, SST49LF030/A, SST49LF040/A, W39V040A, W39V040AP, W49V002A, W49V002AP
SST 49LF002B, 49LF004B
FWH/LPC：PMC：PMC49FL002, PMC49FL004
ST micro：M50FW040, M50FW002, M50LPW002, M50LPW040, M50FLW040A, M50FLW040B
TSOP 32 EEPROM : 28/28C512,010,020,040
EPROM : 27C010,020,040,080
Flash memory : 28F/29C/29F/39F/49F512,010,020,040,001,002,004 / SST39VF020


Cipseturi suplimentare suportate de Wilem 5.0E
SPANSION S25FL004A/040A,S25FL008A,S25FL040A-T,S25FL040A-B,S25FL016A,S25FL032A S25FL064A
WINBOND W25X10, W25X20, W25X40, W25X80, W25X010, W25X020,W25X040, W25X080, W25X16, W25X32, W25X64
MXIC MX25L512, MX25L1005, MX25L2005, MX25L4005A, MX25L8005A, MX25L1605, MX25L3205 MX25L6405
EON EN25B05, EN25B10, EN25B20, EN25B40, EN25B80, EN25B16, EN25B32, EN25B64 EN25P05, EN25P10, EN25P20, EN25P40, EN25BP80, EN25P16, EN25P32,EN25P64 EN25D80, EN25D16, EN25F20, EN25F40, EN25F80, EN25F16
AMIC A25L05P-B, A25L10P-B, A25L20P-B, A25L05P-T, A25L10P-T, A25L20P-T, A25L512, A25L010, A25L020, A25L040, A25L080, A25L016, A25L032
PMC Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016
Numonyx (ST) M25P05, M25P10, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80 **M45PE10, M45PE20, M45PE40, M45PE80, M45PE16, M25PX80, M25PX16, M25PX32, M25PX64
ATMEL
 AT25DF021, AT25DF041A, AT25DF081, AT25DF081A, AT25DF161, AT25DF321A, AT25DF641, AT26DF041, AT26DF161A, AT26DF321, AT45DF011D, AT45DF021D, AT45DF041D, AT45DF081D, AT45DB161D, AT45DF321D, AT45DF641D


Cipseturi suplimentare suportate de Wilem 5.5C
SST
 39VF1601 49LF002B 49LF003B 49LF004B 39LF040B 39LF/VF020
WINBOND 39v040AP 39v080AP W39V040FA W39V040FAP  W39V040BP  W39V04OBPZ  W49V040FBPZ  W39V040FCP  W39V040FCPZ  W39V080AP  W39V080APZ  W39V080FAP  W39V080FAPZ
ATMEL
49LH002 49LH004
EON 29Fxx
AMIC A49LF004 A49LF004TL A49LF004TL-33C A49LF004TL-33F A49LF004TX A49LF040A A49LF040N 49LF040TL A49LF040TL-33 A49LF040TL-33C A49LF040TX
PMC PM49FL002T PM49FL004T PM49FL008T PM49F002T PM49F020 PM49F008T PM49F020A PM49F004T PM49F040 PM49FLxx
SPD IC
 SDR Memory:  24C02  24C04  24C08  24C16  24C32(32)
DDR Memory:   24C02  24C04  24C08  24C16  24C32(32)  93C06(8 bit)  93C46(8 bit)  93C56(8 bit)  93C57t(8 bit)  93C66(8 bit)  93C76t(8 bit)


*) Lista nu este completa, acest programator face parte din familia de programatoare paralele Willem, informatii suplimentare despre memoriile suportate si modul de programare al diverselor dispozitive puteti obtine la www.ezoflash.com/chip_database.php

Programator Willem PCB5.0

  • Listare

Pret:  lei

Versiune hardware: PCB v5.0 (Willem)
 32Pin ZIF socket pin-drivers.
Lista de dispozitive suportate este in josul paginii*.
Descarcare software 0.98D11 0.98D12C14
 Se poate comuta intre PCB v3 si PCB v5.0 printr-un jumper.
Cu alimentare din USB se pot programa memorii cu Vcc max 5V, dar cu ajutorul unui alimentator separat se poate comuta pe Vcc 5.6V si 6.2V, iar VPP: 3.3V, 5V, 15V, 21V, 25V
Are conectori onboard PLCC32 si FWH/LPC, si comutatoare manuale.

Pretul contine doar programatorul si CD, fara cabluri (LPT/USB).
*)are suport imbunatatit pentru noile memorii seriale SPI, vedeti tabelul din josul paginii .

Tipuri de dispozitive suportate*:


LISTA GENERALA WILLEM

(EPROM,EEPROM,FLASH,I2C,PIC,MCS-51,AVR, 93Cxx, ISP)
EPROM 27C64 , 27C128 , 27C256 , 27C512 , 27C010 , 27C020 , 27C040 , 27C1001
M27C1001 , M27C2001 , M27C4001
27C080 (A19) , M27C801 , M87C257
2716(Vpp25V) , 2732 , (adapter DIP24)
2764 , 27128 , 27256 , 27512 , 27010,
Vpp12.5V (21Vpp Modify Circuit)
EEPROM 28C65 , 28C64 , 28C128 , 28C256 , 28C512 , 28C010 , 28C020 , 28C040
M28C16A/17A (DIP28)
(Adapter or Jumper) 28C16,XLS2816 (DIP24)
FLASH Memory

28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020
MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000
Am28F256A , Am28F512A , Am28F010A , Am28F020A (New command erase/prog.)
-- intel ---
i28F001BX , 28F004 , 28F008 , 28F016
FLASH Memory

29F64 , 29F128 , 29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080
29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 , V29C51002T , 29LV040
Serial (I2C) EEPROM
24Cxx

24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92
--- page write ----
24C32 , 24C64 , 24C128 , 24C256 , 24C512
Microwire EEPROM

<------ Data 8bit -----> (pin 6 ->ORG. [Schematic connect to GND])
93C06 , 93C46 , 93LC46 , 93C56 , 93C57, 93C66 , 93C76 , 93C86 (8bit) , AT59C11 , AT59C22 , AT59C13
CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7)
<------Data 16bit------> (pin 6 ->NC [No Connect])
93C06A , 93C46X , 93C56 , 93C66 , 93C76 , 93C86 (NS)
Microchip PIC 16C84 , 16F84 ,16F84A , 16F627/16F628
12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505
16C620 , 16C621 , 16C622 , 16CE623 , 16CE624 , 16CE625 , 16C710/711
---ICSP connector----
16F870 , 16F871 , 16F872 , 16F873 , 16F874 , 16F876 , 16F877 PIC16F873A , PIC16F874A , PIC16F876A , PIC16F877A
-Add PIC microchip 14bit
PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676 , PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688
PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
-Add microchip 14bit,12bit OTP
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674
PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67
PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A
PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926
PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
-Add PIC microchip 14bit
PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
-Add microchip 14bit OTP
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
-Add PIC microchip 12bit (FLASH memory)
PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57
-Add PIC18Fxxx
PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458
PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320
PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720
PIC18F2331 , 18F2431 , 18F4331 , 18F4431
PIC18F6525 , 18F6621 , 18F8525 , 18F8621
PIC18F6585 , 18F6680 , 18F8585 , 18F8680
PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F6410 , 18F8410 , 18F6490 , 18F8490
Add PIC18Fxxx
PIC18F2410 , PIC18F2420 , PIC18F2455
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585
PIC18F2610 , PIC18F2620 , PIC18F2680
PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585
PIC18F4610 , PIC18F4620 , PIC18F4680
Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785)
Fixed Programming PIC all
Test on chip
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74
PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819
PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A,
eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW
PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431

Atmel Flash Memory
(Sector Programming)
(Software Data Protection)

AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A
W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040
PH29EE010(W29EE011)

ASD AE29F1008 (AT29C010), AE29F2008 (AT29C020)
Ver 0.992 up(DOS). Can run under win9x
(disable prog. CPUIdle or CPUCool)

AT49BV512

Atmel Flash Memory
AT49Fxxx (Subset 29Fxxx)
(Byte-by-Byte Programming)
(Software Data Protection)

Command seq. 5555/AA, 2AAA/55, 5555/A0
AT49F512 , AT49F010 , AT49F020 , AT49F040
SST39SF010 , SST3S9F020 ,SST39SF040
AT49F001 , AT49F002 , AT49F008A

Command seq. 555/AA, 2AA/55, 555/A0
Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080
29F002 , 29F002T , Pm29F002T

Serial Peripheral Interface (SPI)
EEPROM Mode0 (0,0)
AT25xxx, W95xxx

[Atmel] AT25010 , 020 , 040 (A8-A0)
AT25080 , 160 , 320 , 640 , 128 , 256 (A15-A0)
[ST] W95010....256, Microchip 25x010 - 25x640
--- Byte programming
25010 , 25020 , 25040
--- Page programming
25C080 , 25C160 , 25C320 , 25C640 , 25C128 , 25C256 , 25C512
AT25HP256 , AT25HP512 , M25P10 , M25P20 , M25P40
AT25HP1024 (24bit address)
-- CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx
CAT64LC010, CAT64LC020, CAT64LC040

Atmel EEPROM (page prog.)
(Software Data Protection)

 AT28C256 , AT28C010 , AT28C040
Nonvaltile SRAM (DS12xx) DS1220 , DS1225Y , DS1230Y/AB , DS1245Y/AB , DS1249Y/AB

static RAM (Test RAM)

 6116 , 6264 , 62256 , 62512 , 628128

EPROM winbond,SST
Electrical Erase Chip

W27E512 , W27E010 , W27C010 , W27C020 , W27C040
SST27SF256 , SST27SF512 , SST27SF010 , SST27SF020
MX26C4000
Vcc = 3.3-3.6V SST37VF512 , SST37VF010 , SST37VF020 , SST37VF040

Flash Memory SST,Sanyo

 SST28SF040A , LE28F4001

Cipseturi suportate : de folosit impreuna cu adaptoare

Atmel AT89Cxx (MCS-51)
Adaptor AT89+

Atmel Auto Setect
AT89C51 , 52 , 55 , AT89LV51 , 52 , 55
AT89S8252 (8K+2K) , AT89S53 , AT89LS8252 , AT89LS53
AT89C1051 , AT89C2051 , AT89C4051 (20pin)
AT89C51RC (32KB) , AT89C55WD (6.2V)
SST89C54/58 , SI89C52
Intel Auto Select
i87C51 , i87C51FA , i87C51FB
------------------------------------------------
i8xC51 , i8xC52 , i8xC54 , i8xC58 (tWP = 100uS*25 Pulse)

Atmel AVR 8-bit RISC AT90Sxxx
(Parallel programming)
AT89+/ MCS51+

(read , write , erase , verify , checkempty , Lockbits , Fusebits) [Flash memory/EEPROM]
AT90S1200 , AT90S2313
90S2333 , 90S4433 , 90S4414 , 90S8515 , 90S4434 , 90S8535
reference AT90S2313 pin
Function Lockbit read AT90S2313 Errata Sheet.pdf

AT89+/ PLCC44

ROM (read/verify)
P8048AH , P8049AH,P8050AH , P8042AH Vea = 12V
P8041 , P8042

OTP (read/verify/Progam)
P8748 , P8749H , P8742H Vea = 18V

EPROM (read/verify/Progam)
D8748 , D8749 , D8742 , D8741 , D8742 Vea = 18V
EPROM 16bit (DIP40) (1-4Mbit)
Adapter Eprom 16bit
Eprom only
 27C1024 (27C210) , 27C2048 (27C2002) , 27C4096 (27C4002),
Schematic by Toomas Toots
(read , Program byte mode
by use Resister pull up Data Bus (0xFF) , A0 select low or high byte)

EPROM 16bit (DIP42) (4-32Mbit)
Adapter Eprom DIP42
Eprom only

 M27C400(DIP40) , 27C800 , 27C160 , 27C322
Schematic by Toomas Toots
(read , Program byte mode
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
Firmware Hub / LPC FLASH
Adapter Firmware Hub/LPC (PLCC32) (PP mode) (3.3V)

-- Firmware Hub
82802AB , 82802AC , AT49LW040 , AT49LW080

SST49LF002A , SST49LF003A , SST49LF004A , SST49LF008A
W49V002FA , W39V040FA

-- LPC flash
SST49LF020 , SST49LF040
W49V002A , W39V040A
P28F002BC
Adapter P28F002BC (DIP40)

BOOT BLOCK FLASH MEMORY
- P28F002BC
TSOP 48 (8/16 bit) Am29F400, Am29F800, Am29F160, Am29F320, HY29F200,  HY29F400, HY29F800, AT49F2048A, AT49F4096A, AT49F8192A, 29LV200, 29LV400 , 29LV800 , 29LV160 , 29LV320, AT49LV1614, i28F200, i28F400, i28F800, i28F160 (TSOP48), 28F001(DIP32 or PLCC32)
TSOP 48 (16 bit) INTEL 28FX00: 28F400 B3T；28F800 B3T；28F160 B3T；28F400 B3B；28F800 B3B；28F160 B3B；28F800 C3T； 28F160 C3T；28F320 C3T；28F800 C3B；28F160 C3B；28F320 C3B；28F320 J3；28F640 J3;
29LVX00： MBM29LV400-T；MBM29LV800-T；MBM29LV160-T；MBM29LV400-B；MBM29LV800-B； MBM29LV160-B；MBM29DL400；MBM29DL800；MBM29DL16X；MBM29DL32X；MBM29DL322;
39LF/VFX00： 39LF/VF200A；39LF/VF400A；39LF/VF800A；39LF/VF160;29FX00：29F100；29F200； 29F400；29F800；29F160；29F320；29F102

TSOP 40A

 MBM29LV002ST/SB , MBM29LV002TC/BC, MBM29LV002TA/BA, MBM29LV004, MBM29LV008, MBM29LV016, MBM29LV017, MBM29LV080, MBM29F002ST/SB, MBM29LV016, Am29LV004, Am29LV002, Am29LV008, AM29F002ST/SB, AM29F004X, AM29F008X, AM29F016X, AM29F032X
TSOP 40B MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5 , 29F032 , Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU
FWH-TSOP 40 INTEL：i82802AC
ATMEL：AT49LW080/008
SST：SST49LF008/A
LPC flash：SST：SST49LF080/A
FWH/LPC：ST micro：M50FW080/008, M50LPW080/008, M50FW016,M50LPW116, PT49V080/008
FWH-TSOP 32 INTEL：i82802AB, i82802AC
ATMEL：AT49LW040
SST：SST49LF002/A, SST49LF003/A, SST49LF004/A, W39V040F, W39V040FA, W39V040FAP
LPC Flash：SST：SST49LF020/A, SST49LF030/A, SST49LF040/A, W39V040A, W39V040AP, W49V002A, W49V002AP
SST 49LF002B, 49LF004B
FWH/LPC：PMC：PMC49FL002, PMC49FL004
ST micro：M50FW040, M50FW002, M50LPW002, M50LPW040, M50FLW040A, M50FLW040B
TSOP 32 EEPROM : 28/28C512,010,020,040
EPROM : 27C010,020,040,080
Flash memory : 28F/29C/29F/39F/49F512,010,020,040,001,002,004 / SST39VF020


Cipseturi suplimentare suportate de Wilem 5.0E
SPANSION S25FL004A/040A,S25FL008A,S25FL040A-T,S25FL040A-B,S25FL016A,S25FL032A S25FL064A
WINBOND W25X10, W25X20, W25X40, W25X80, W25X010, W25X020,W25X040, W25X080, W25X16, W25X32, W25X64
MXIC MX25L512, MX25L1005, MX25L2005, MX25L4005A, MX25L8005A, MX25L1605, MX25L3205 MX25L6405
EON EN25B05, EN25B10, EN25B20, EN25B40, EN25B80, EN25B16, EN25B32, EN25B64 EN25P05, EN25P10, EN25P20, EN25P40, EN25BP80, EN25P16, EN25P32,EN25P64 EN25D80, EN25D16, EN25F20, EN25F40, EN25F80, EN25F16
AMIC A25L05P-B, A25L10P-B, A25L20P-B, A25L05P-T, A25L10P-T, A25L20P-T, A25L512, A25L010, A25L020, A25L040, A25L080, A25L016, A25L032
PMC Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016
Numonyx (ST) M25P05, M25P10, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80 **M45PE10, M45PE20, M45PE40, M45PE80, M45PE16, M25PX80, M25PX16, M25PX32, M25PX64
ATMEL
 AT25DF021, AT25DF041A, AT25DF081, AT25DF081A, AT25DF161, AT25DF321A, AT25DF641, AT26DF041, AT26DF161A, AT26DF321, AT45DF011D, AT45DF021D, AT45DF041D, AT45DF081D, AT45DB161D, AT45DF321D, AT45DF641D


Cipseturi suplimentare suportate de Wilem 5.5C
SST
 39VF1601 49LF002B 49LF003B 49LF004B 39LF040B 39LF/VF020
WINBOND 39v040AP 39v080AP W39V040FA W39V040FAP  W39V040BP  W39V04OBPZ  W49V040FBPZ  W39V040FCP  W39V040FCPZ  W39V080AP  W39V080APZ  W39V080FAP  W39V080FAPZ
ATMEL
49LH002 49LH004
EON 29Fxx
AMIC A49LF004 A49LF004TL A49LF004TL-33C A49LF004TL-33F A49LF004TX A49LF040A A49LF040N 49LF040TL A49LF040TL-33 A49LF040TL-33C A49LF040TX
PMC PM49FL002T PM49FL004T PM49FL008T PM49F002T PM49F020 PM49F008T PM49F020A PM49F004T PM49F040 PM49FLxx
SPD IC
 SDR Memory:  24C02  24C04  24C08  24C16  24C32(32)
DDR Memory:   24C02  24C04  24C08  24C16  24C32(32)  93C06(8 bit)  93C46(8 bit)  93C56(8 bit)  93C57t(8 bit)  93C66(8 bit)  93C76t(8 bit)


*) Lista nu este completa, acest programator face parte din familia de programatoare paralele Willem, informatii suplimentare despre memoriile suportate si modul de programare al diverselor dispozitive puteti obtine la www.ezoflash.com/chip_database.php
